- Under the
Apple menu, open System Preferences and click Print & Fax.
Result: The Print & Fax window opens.
Note: If the padlock in the lower-left corner is closed,
click it and enter the Macintosh administrator name and password.
- To add a printer, click the +
Result: The setup window opens.
- In the setup window, if not already
selected, click the IP button in the bar at the top.
the Protocol field, if not selected by default, select Line
Printer Daemon - LPD from the drop-down menu.
- In the Address
field, type the IP Address of the printer from the Print Server
Information (see above).
Result: If the printer is found, the setup will state "Valid
and complete address.".
- (Optional)From the Print Using
drop-down menu, select Select a driver to use.
Result: A search box and scroll list should appear.
the search box, enter the make or model number of the target printer
(you may need to look at the printer itself or print a test page from
- (Optional) Select the printer model from the result list.

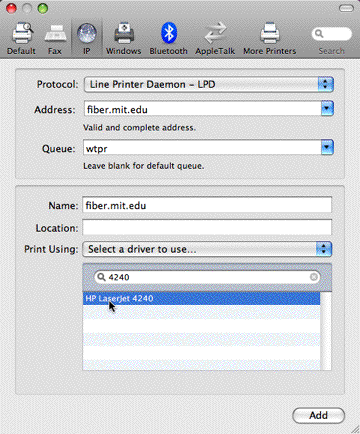

Result: The completed setup window will look similar to the
If you cannot locate the driver from
the list populated for you, please find the appropriate driver
for the printer you want to install. To Locate the driver(s), as
well as instructions on how to install and run it,
- Click Add.
in step #9, a window of Installable Options for the specified printer
may be displayed. Check these as appropriate for the printer,
especially if it will print Duplex, then click Continue.
Result: The printer, under it's Spool host name, will be
added to the Printer List in the Print & Fax window.
- You may add other printers by
clicking the + (plus) sign in the Print & Fax window, or quit System
